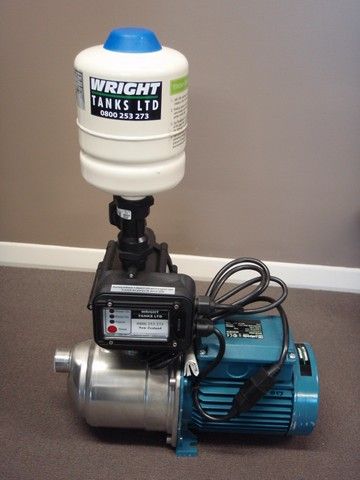

Calpeda Water Pump

The Calpeda MXA series pumps are a cast iron body with a stainless steel multi stage self-priming pump unit. A autoflow controller is fitted to ensure reliable water flow and control.

Calpeda MXA  applications

For clean liquids without abrasives, which are non-aggressive for the pump materials ( solids content up to 0.2%).
For water supply.
For heating, air-conditioning, cooling and circulation plants.
For civil and industrial applications.
For irrigation.

Operating conditions Liquid temperature from -0 °C to +35 °C.
Ambient temperature up to 40° C.
Maximum permissible working pressure up to 8 bar Continuous duty.
Motor 2-pole induction motor, 50 Hz (n = 2800 rpm).
Single-phase 230 ± 10% V with thermal protector.
Capacitor inside the terminal box. Insulation class F. Protection IP 54.

2L Header Tank

Header Tanks are designed to store certain amount of water until required.


5,000 gal Water Tank

5,000 gal total volume.
