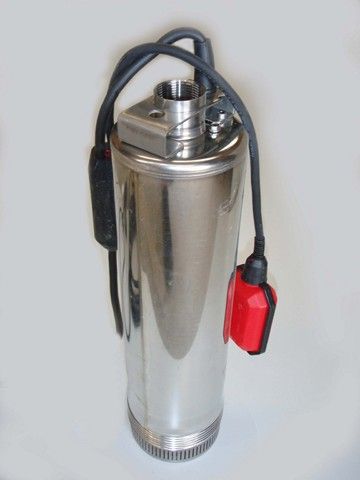

Diver 100M

Diver pumps are provided with removable cable connector. This solution allows a fast assembly/disassembly of the hydraulic part and facilitates maintenance operations.
Encapsulated stator with AISI 304 stainless steel outer casing.
Shaft end made of AISI 304.
Mechanical seal made of silicon carbide.

TECHNICAL SPECIFICATION
240V
75kw
50m Head
Flow to 80 l/minute
Insulation Class F
Degree of protection IP68
Max liquid temp. 35 °C
Voltage tolerance 6% / - 10%
Max starts 20/h
               Max working depth 20 m.
               Mechanical seal Silicon carbide
